KY20005 (HY系列)
2.0mm间距
2.0mm间距

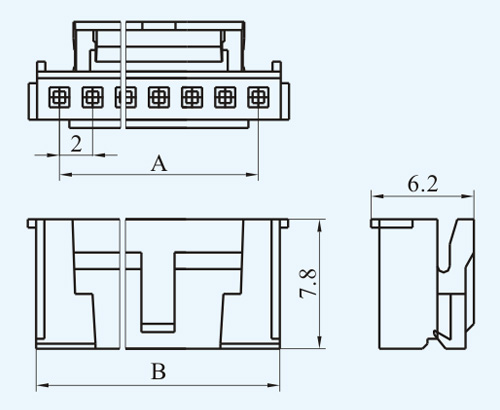

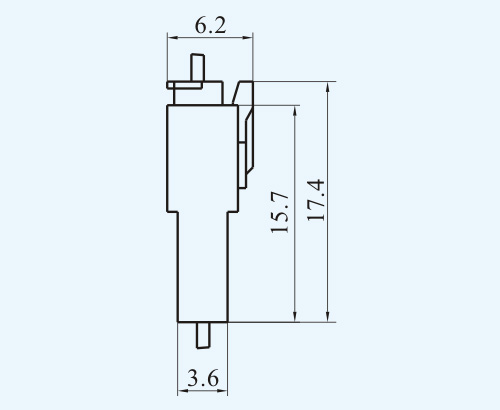

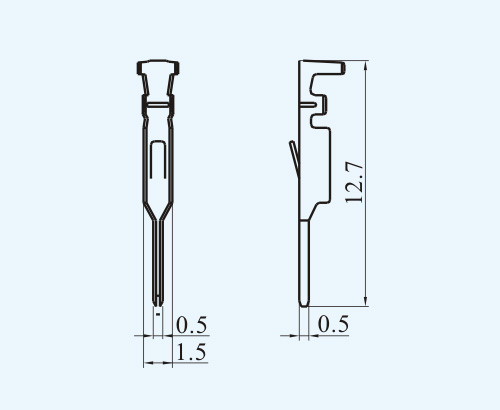

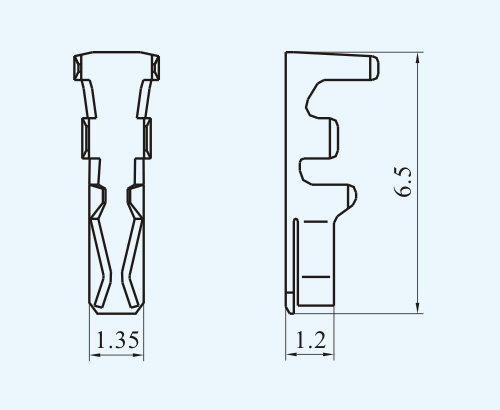

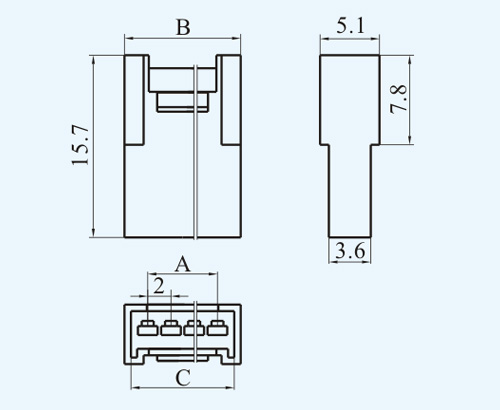

外形尺寸
3-003-2-P(HY-P)
3-003-2-PT(HY-PT)
3-003-2-R(HY-R)
3-003-2-RT(HY-RT)
安装尺寸
型号规格
| 极数 | 型号 | 尺寸(mm) | |
| A | B | ||
| 2 | HY-2P | 2.0 | 4.6 |
| 3 | HY-3P | 4.0 | 6.6 |
| 4 | HY-4P | 6.0 | 8.6 |
| 5 | HY-5P | 8.0 | 10.6 |
| 6 | HY-6P | 10.0 | 12.6 |
| 7 | HY-7P | 12.0 | 14.6 |
| 8 | HY-8P | 14.0 | 16.6 |
| 9 | HY-9P | 16.0 | 18.6 |
| 10 | HY-10P | 18.0 | 20.6 |
| 11 | HY-11P | 20.0 | 22.6 |
| 12 | HY-12P | 22.0 | 24.6 |
| 13 | HY-13P | 24.0 | 26.6 |
| ~ | ~ | ~ | ~ |
| 17 | HY-17P | 32.0 | 34.6 |
| 极数 | 型号 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | HY-2R | 2.0 | 6.0 | 4.9 |
| 3 | HY-3R | 4.0 | 8.0 | 6.9 |
| 4 | HY-4R | 6.0 | 10.0 | 8.9 |
| 5 | HY-5R | 8.0 | 12.0 | 10.9 |
| 6 | HY-6R | 10.0 | 14.0 | 12.9 |
| 7 | HY-7R | 12.0 | 16.0 | 14.9 |
| 8 | HY-8R | 14.0 | 18.0 | 16.9 |
| 9 | HY-9R | 16.0 | 20.0 | 18.9 |
| 10 | HY-10R | 18.0 | 22.0 | 20.9 |
| 11 | HY-11R | 20.0 | 24.0 | 22.9 |
| 12 | HY-12R | 22.0 | 26.0 | 24.9 |
| 13 | HY-13R | 24.0 | 28.0 | 26.9 |
| ~ | ~ | ~ | ~ | ~ |
| 17 | HY-17R | 32.0 | 36.0 | 34.9 |
