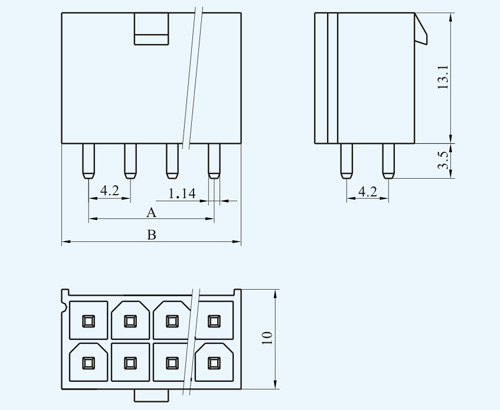

外形尺寸

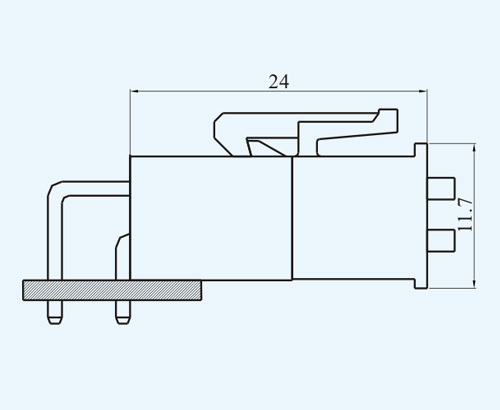

2-053-4-A(5566-A)

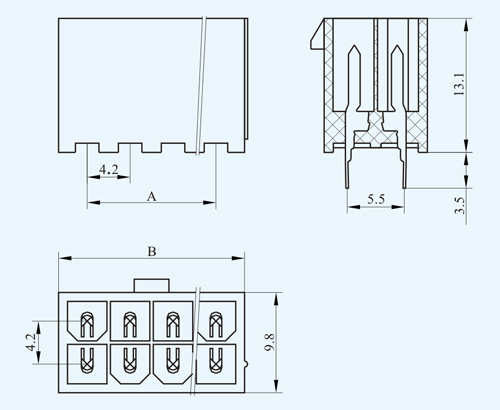

2-053-4-A(5569-A)

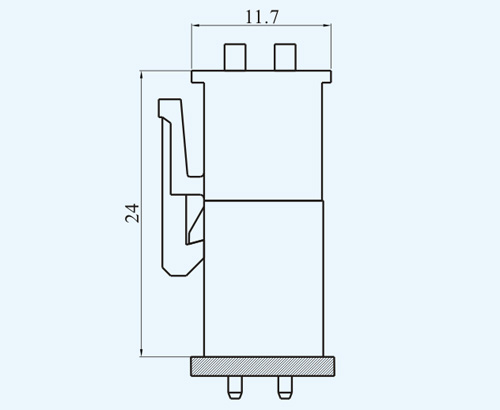

2-053-4-AW(5569-AW)

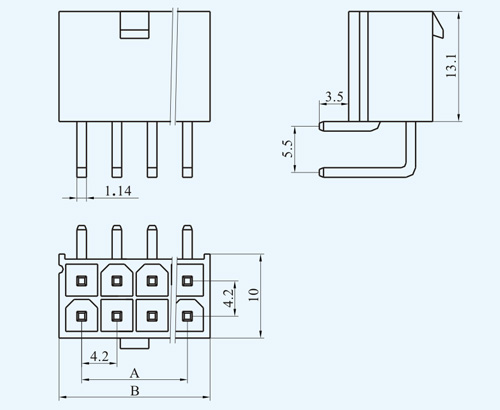

2-053-4-AW(5569F-AW)

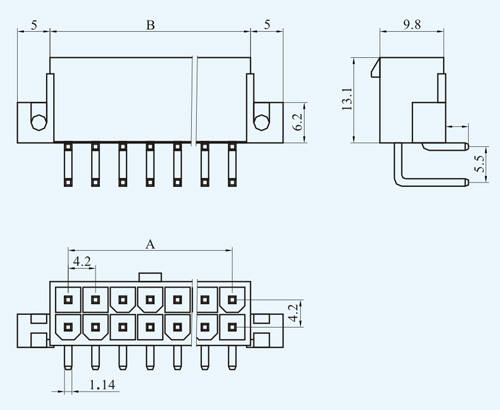

2-053-4-Y(5557-Y)

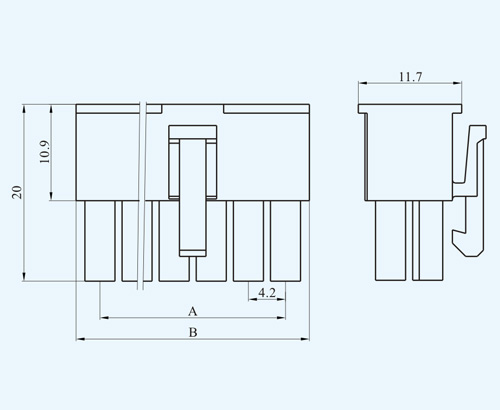

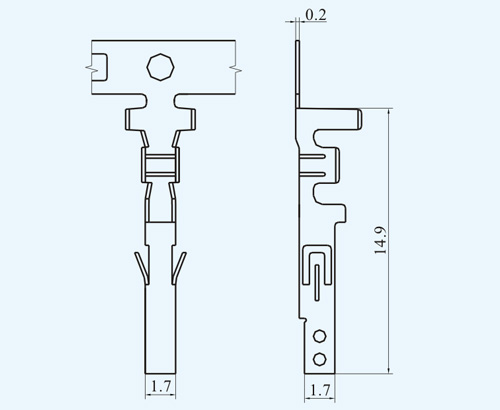

2-053-4-T(5556-T)

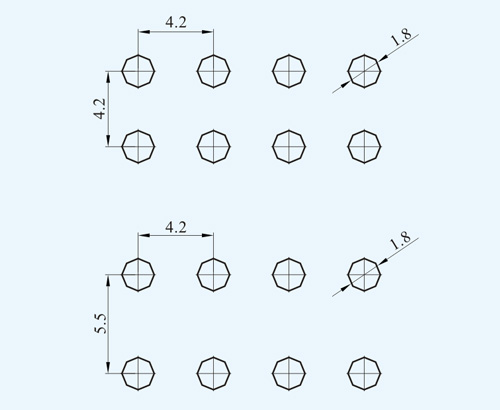

安装尺寸
型号规格
| 极数 | 型号 | 尺寸(mm) | |
| A | B | ||
| 2×1 | 5566/5569/5569F-2A/W | - | 5.4 |
| 2×2 | 5566/5569/5569F-4A/W | 4.2 | 9.6 |
| 2×3 | 5566/5569/5569F-6A/W | 8.4 | 13.8 |
| 2×4 | 5566/5569/5569F-8A/W | 12.6 | 18.0 |
| 2×5 | 5566/5569/5569F-10A/W | 16.8 | 22.2 |
| 2×6 | 5566/5569/5569F-12A/W | 21.0 | 26.4 |
| 2×7 | 5566/5569/5569F-14A/W | 25.2 | 30.6 |
| 2×8 | 5566/5569/5569F-16A/W | 29.4 | 34.8 |
| 2×9 | 5566/5569/5569F-18A/W | 33.6 | 39.0 |
| 2×10 | 5566/5569/5569F-20A/W | 37.8 | 43.2 |
| 2×11 | 5566/5569/5569F-22A/W | 42.0 | 47.4 |
| 2×12 | 5566/5569/5569F-24A/W | 46.2 | 51.6 |
| 极数 | 型号 | 尺寸(mm) | |
| A | B | ||
| 2×1 | 5557-2Y | - | 5.4 |
| 2×2 | 5557-4Y | 4.2 | 9.6 |
| 2×3 | 5557-6Y | 8.4 | 13.8 |
| 2×4 | 5557-8Y | 12.6 | 18.0 |
| 2×5 | 5557-10Y | 16.8 | 22.2 |
| 2×6 | 5557-12Y | 21.0 | 26.4 |
| 2×7 | 5557-14Y | 25.2 | 30.6 |
| 2×8 | 5557-16Y | 29.4 | 34.8 |
| 2×9 | 5557-18Y | 33.6 | 39.0 |
| 2×10 | 5557-20Y | 37.8 | 43.2 |
| 2×11 | 5557-22Y | 42.0 | 47.4 |
| 2×12 | 5557-24Y | 46.2 | 51.6 |
