KY67001 (3191系列)
6.7mm
6.7mm

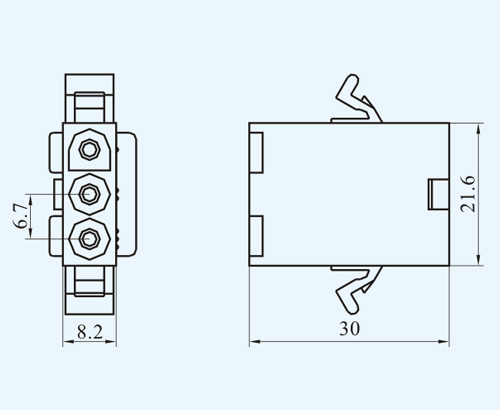

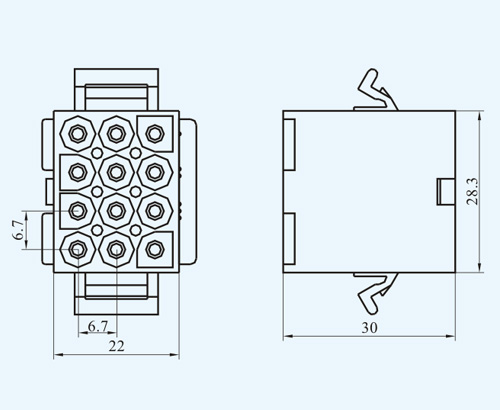

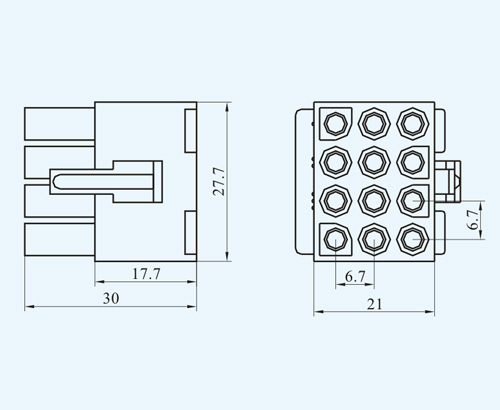

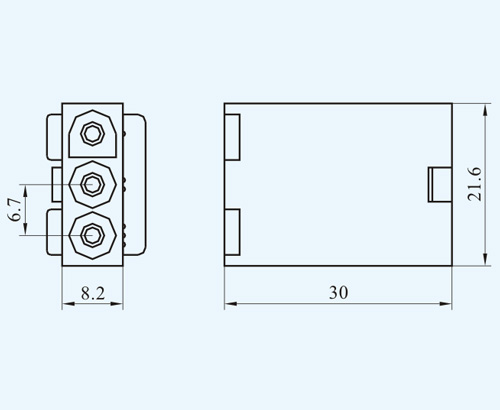

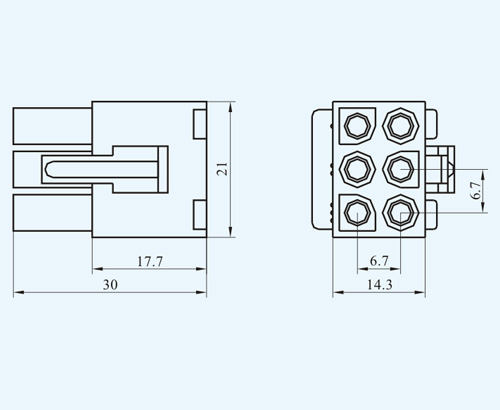

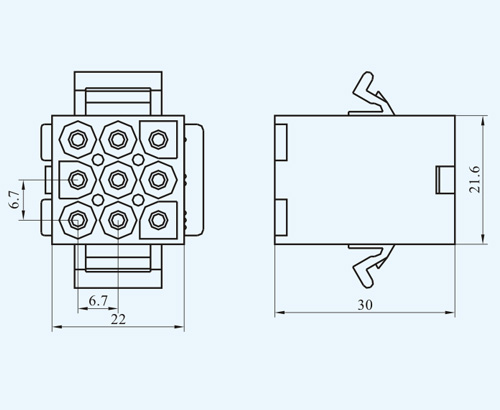

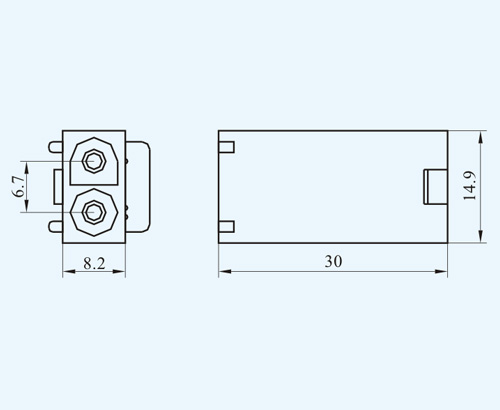

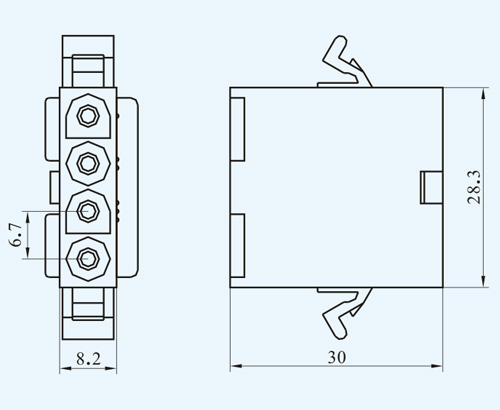

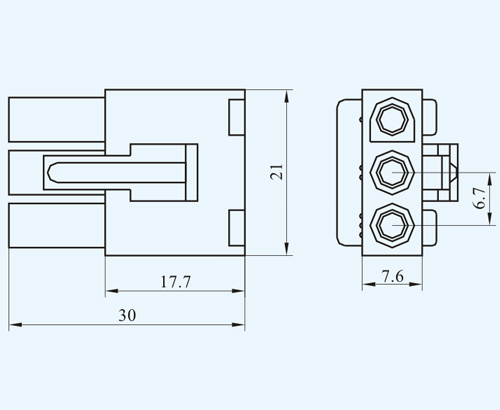

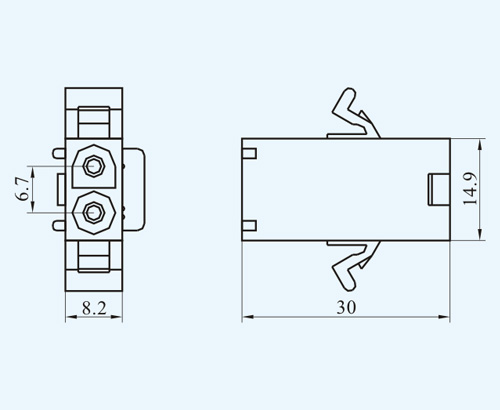

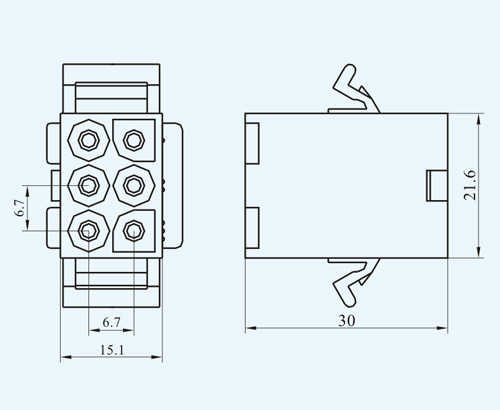

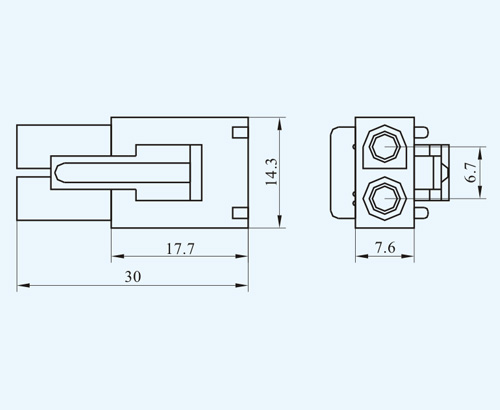

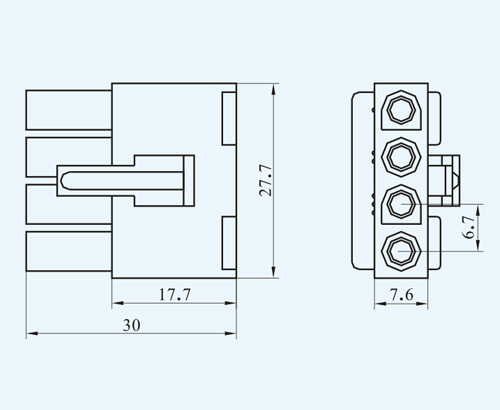

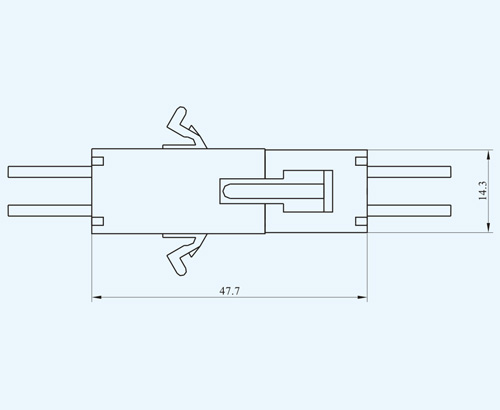

Contour dimension

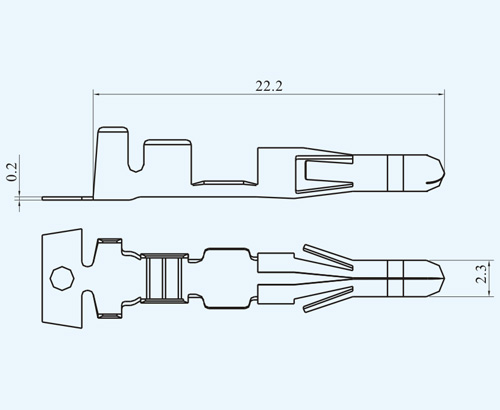

3-029-6-PT(3191-PT)

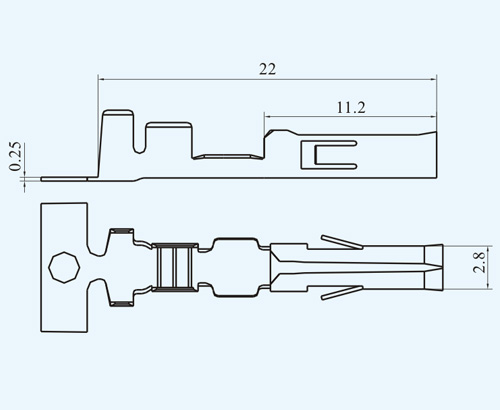

3-029-6-RT(3191-RT)

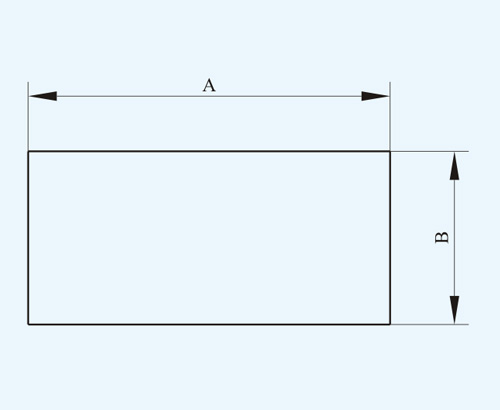

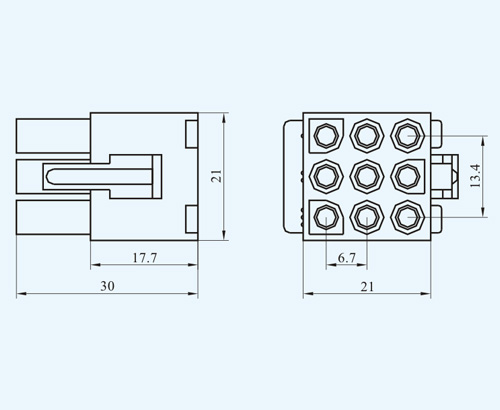

安装尺寸
极数 | 额定电压 | 额定电流 | 插头 | 插座 |
| 2 | 300V | 12A | 3-029-6-2P(3191-2P)  | 3-029-6-2R(3191-2R)  |
3-029-6-2RF(3191-2RF)  | ||||
| 3 | 300V | 10A | 3-029-6-3P(3191-3P)  | 3-029-6-3R(3191-3R)  |
3-029-6-3RF(3191-3RF)  | ||||
| 4 | 300V | 8A | 3-029-6-4P(3191-4P)  | 3-029-6-4R(3191-4R)  |
| 6 | 300V | 8A | 3-029-6-6P(3191-6P)  | 3-029-6-6R(3191-6R)  |
| 9 | 300V | 8A | 3-029-6-9P(3191-9P)  | 3-029-6-9R(3191-9R)  |
| 12 | 300V | 8A | 3-029-6-12P(3191-12P)  | 3-029-6-12R(3191-12R)  |
| 极数 | 型号 | 尺寸(mm) | |
| A | B | ||
| 1×2 | 3191-2R | 20.9 | 10.0 |
| 1×3 | 3191-3R | 27.2 | 10.0 |
| 1×4 | 3191-4R | 34.3 | 10.0 |
| 2×3 | 3191-6R | 27.9 | 17.3 |
| 3×3 | 3191-9R | 28.4 | 23.7 |
| 3×4 | 3191-12R | 35.4 | 23.7 |
