Metal Button switch

KY54001 (88963/88964系列)
5.4mm

Download drawings

技术特性
额定电压	250V AC，DC
额定电流	3A AC, DC
接触电阻	20mΩ max
绝缘电阻	1000MΩ min
耐压	1000V AC/minute
环境温度	-25°C〜+85°C
适用线规	AWG#28〜#22
材料
插座	尼龙UL94-V0(2)
插头	尼龙UL94-V0(2)
端子	磷青铜,镀锡

Contour dimension

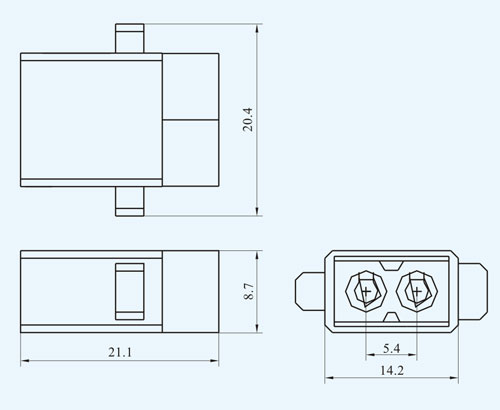

3-024-5-2P(88963-2P)

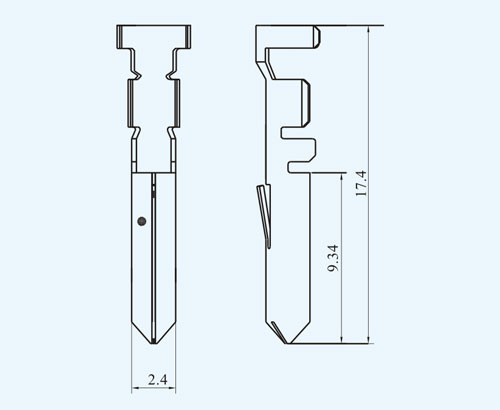

3-024-5-PT(88963-PT)

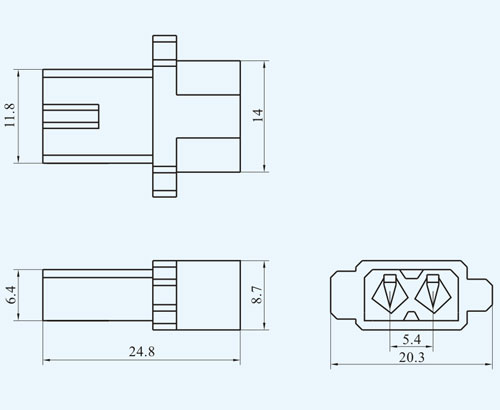

3-024-5-2R(88964-2R)

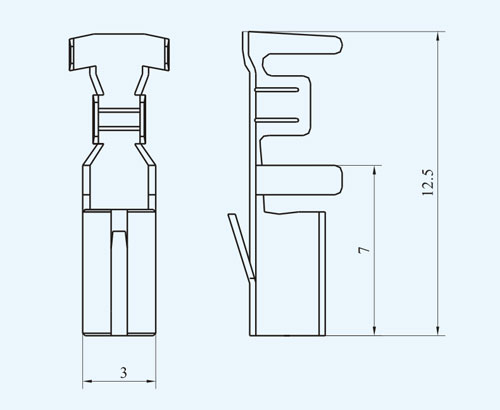

3-024-5-RT(88964-RT)
