Metal Button switch

KY50802 (TJC10系列)
5.08mm

Download drawings

技术特性
额定电压	100V AC，DC
额定电流	3A AC, DC
接触电阻	20mΩ max
绝缘电阻	1000MΩ min
耐压	1000V AC/minute
环境温度	-25°C〜+85°C
适用线规	AWG#26〜#22
材料
插座	尼龙UL94-V0(2)
插头	尼龙UL94-V0(2)
端子	磷青铜,镀锡

Contour dimension

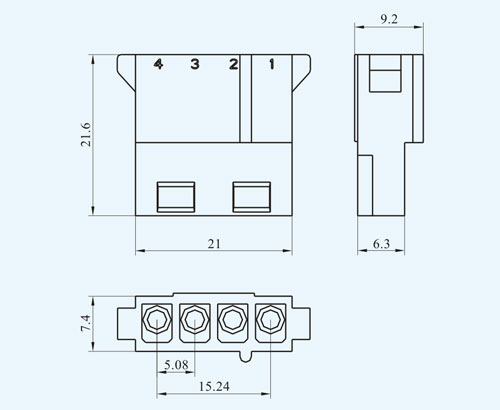

3-023-5-4P(TJC10-4P)

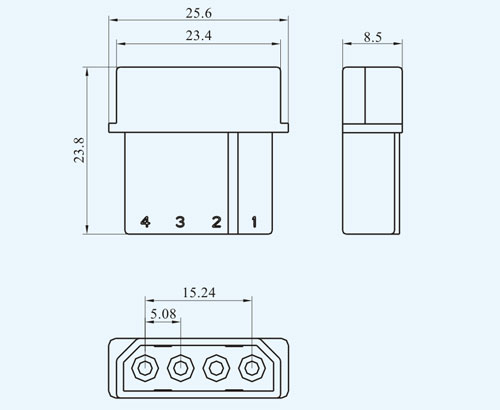

3-023-5-4R(TJC10-4R)

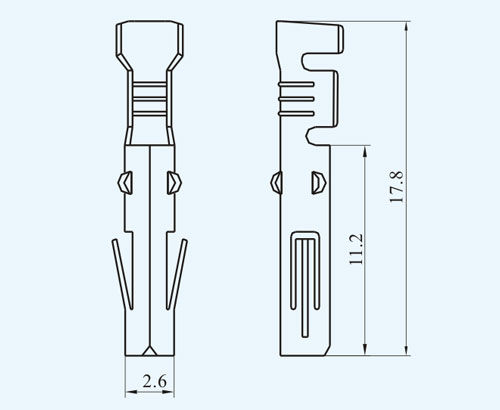

3-023-5-PT(TJC10-PT)

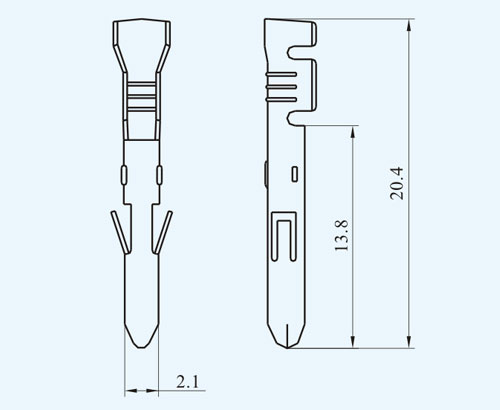

3-023-5-RT(TJC10-RT)

安装尺寸
