KY45002 (YL系列)
4.5mm
4.5mm

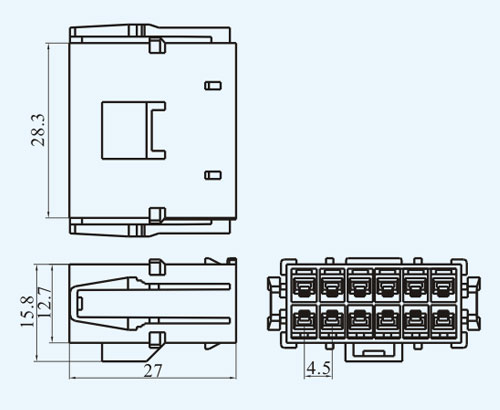

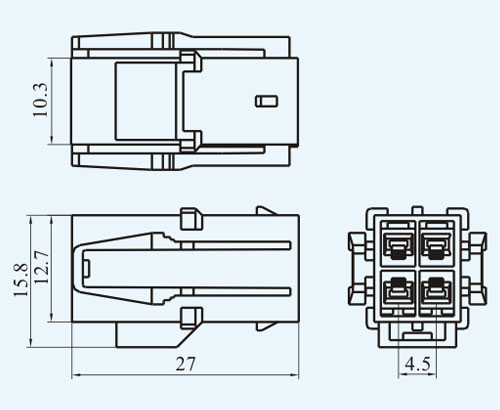

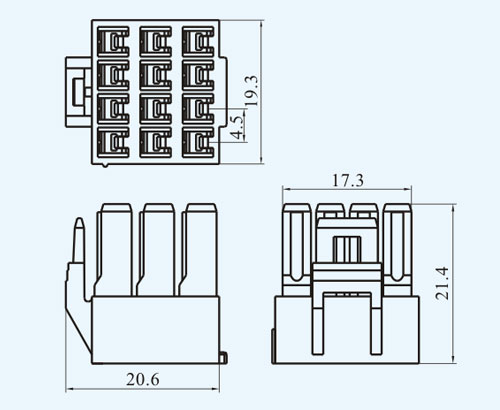

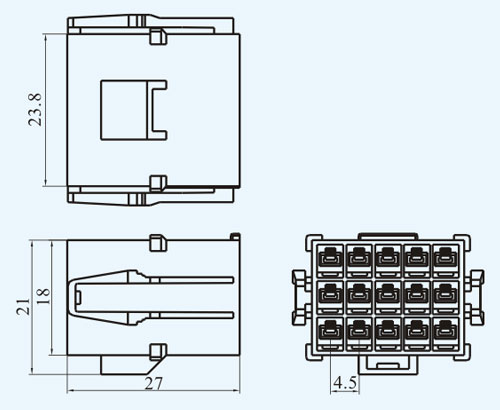

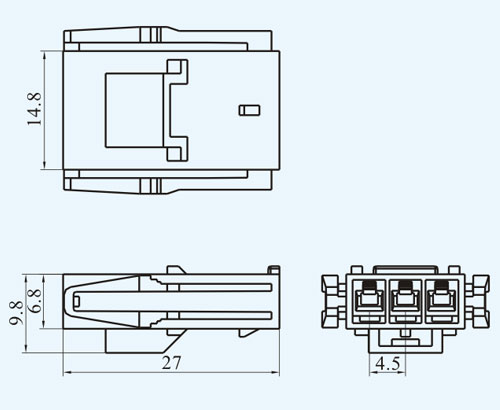

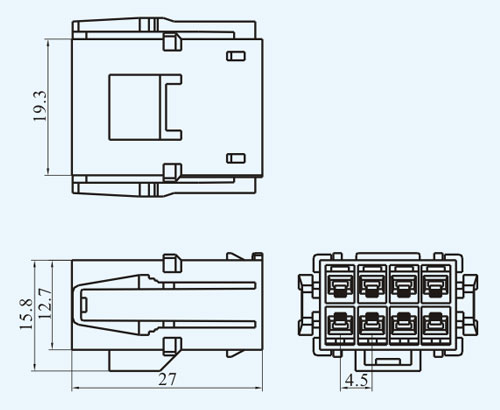

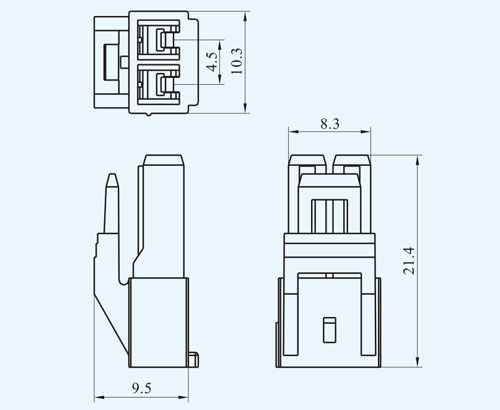

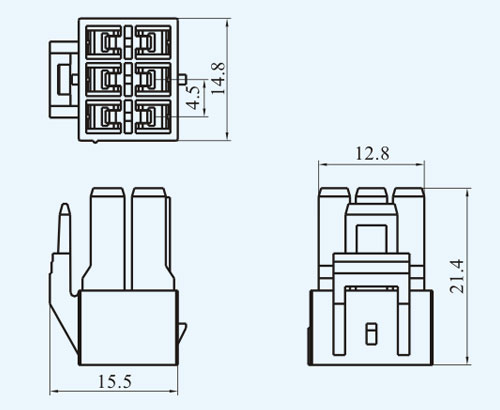

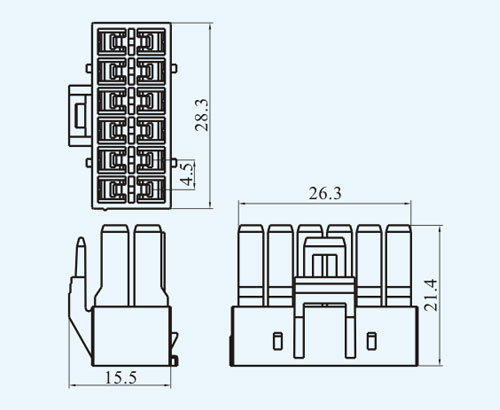

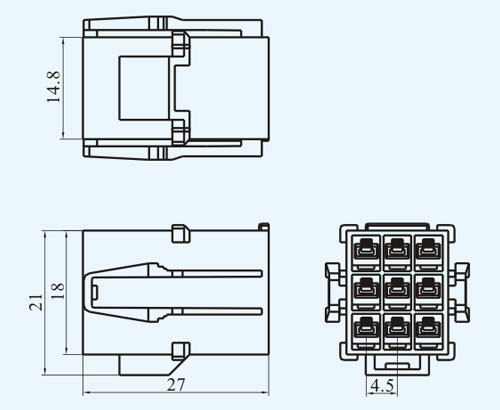

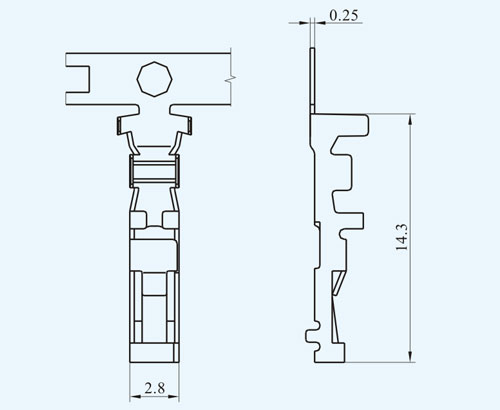

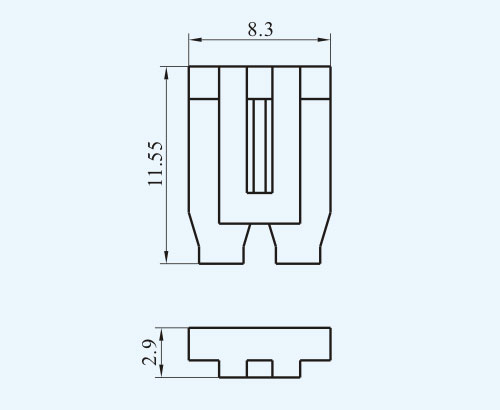

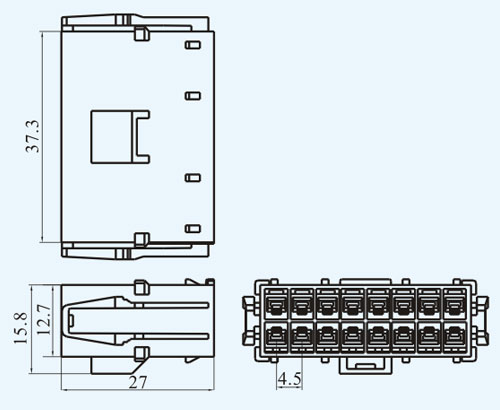

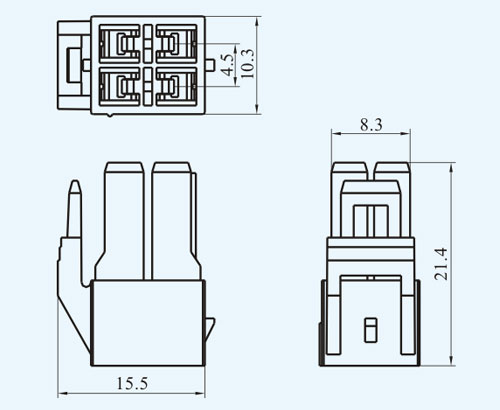

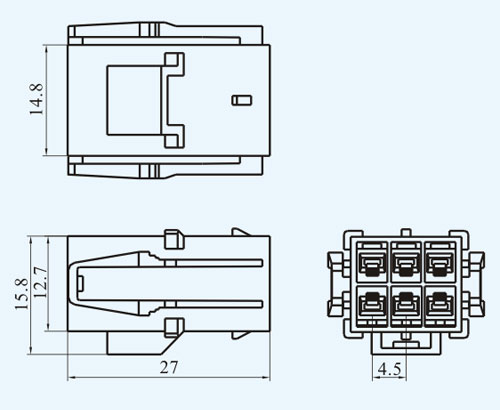

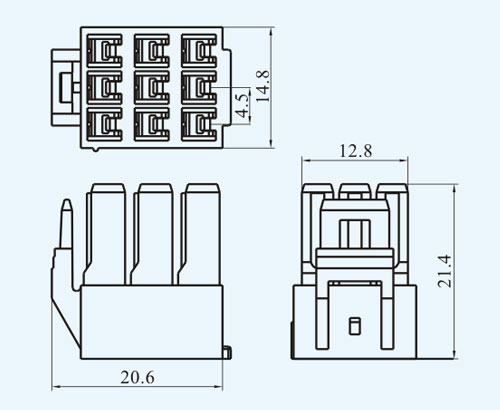

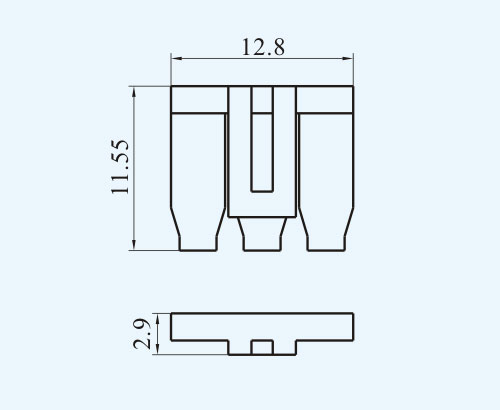

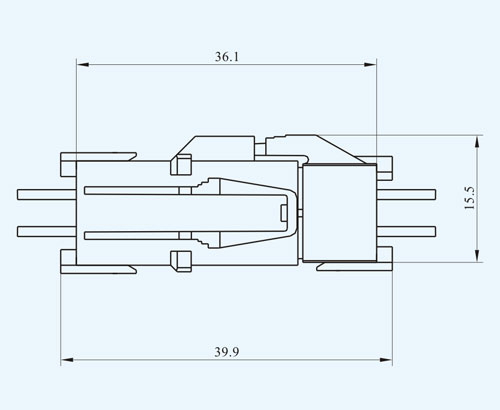

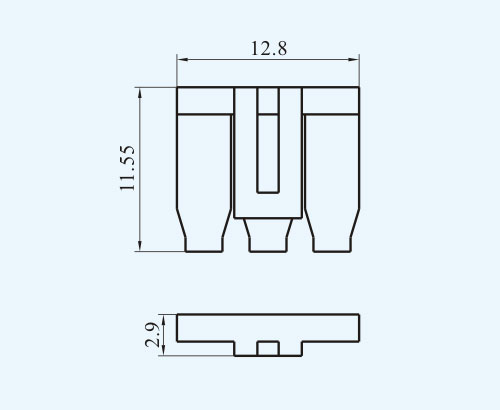

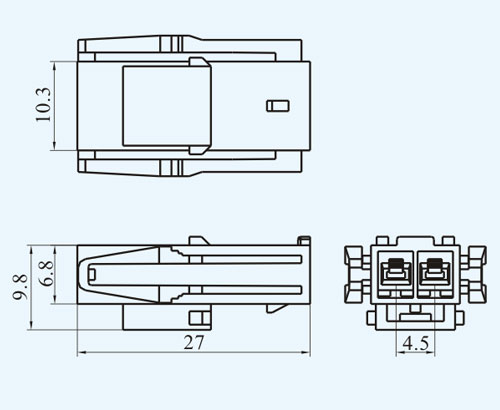

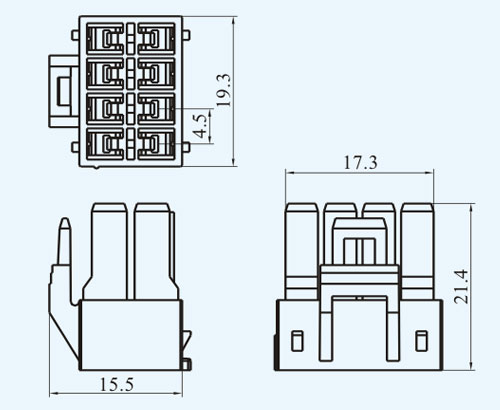

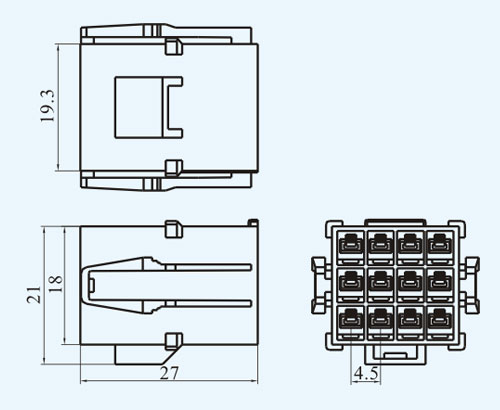

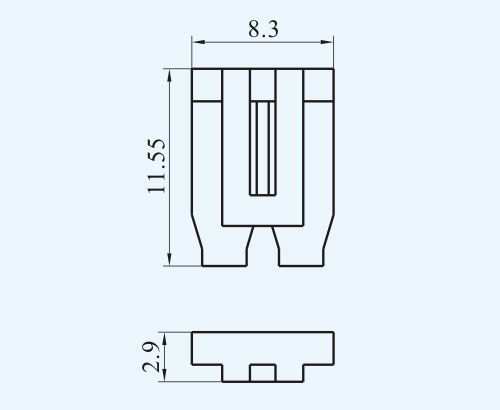

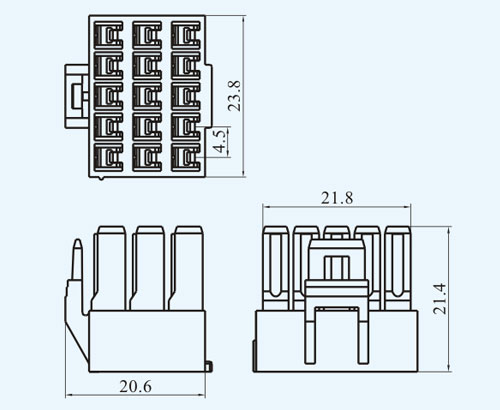

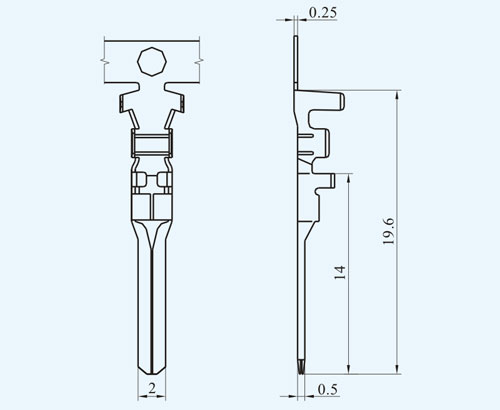

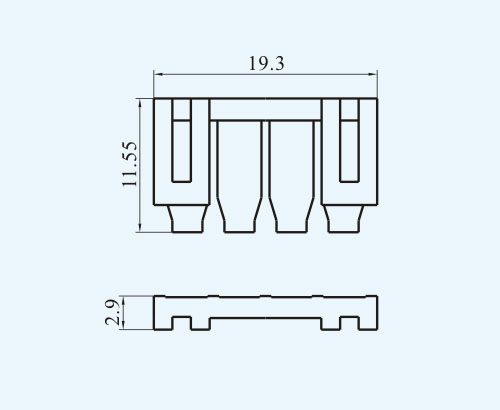

Contour dimension
3-022-4-PT(YL-PT)
3-022-4-RT(YL-RT)

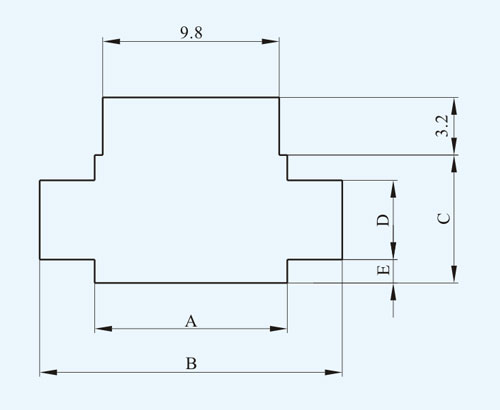

安装尺寸
极数 | 额定电压 | 额定电流 | 插头 | 插座 | 线锁扣 |
| 2 | 300V | 7A(10A) | 3-022-4-2P(YL-2P)  | 3-022-4-2R(YL-2R)  | 3-022-4-2S(YL-2S)  |
| 3 | 300V | 6A(9A) | 3-022-4-3P(YL-3P)  | 3-022-4-3R(YL-3R)  | 3-022-4-3S(YL-3S)  |
| 4 | 300V | 5A(8A) | 3-022-4-4P(YL-4P)  | 3-022-4-4R(YL-4R)  | 3-022-4-4S(YL-4S)  |
| 6 | 300V | 5A(8A) | 3-022-4-6P(YL-6P)  | 3-022-4-4R(YL-6R)  | 3-022-4-6S(YL-6S)  |
| 8 | 300V | 4A(6A) | 3-022-4-8P(YL-8P)  | 3-022-4-8R(YL-8R) | 3-022-4-8S(YL-8S)  |
| 9 | 300V | 4A(6A) | 3-022-4-9P(YL-9P)  | 3-022-4-9R(YL-9R)  |  |
| 12 | 300V | 3A(6A) | 3-022-4-12P(YL-12P)  | 3-022-4-12R(YL-12R)  |  |
| 12 | 300V | 3A(6A) | 3-022-4-12P(YL-12P)  | 3-022-4-15R(YL-12R)  |  |
| 15 | 300V | 3A(5A) | 3-022-4-15P(YL-15P)  | 3-022-4-15R(YL-15R)  | |
| 16 | 300V | 3A(5A) | 3-022-4-16P(YL-16P)  | 3-022-4-16R(YL-16R)  | |
| 极数 | 型号 | 适用PC板厚度(mm) | ||||||||||
| 0.7~2.0 | 0.7~0.8 | 0.9~1.3 | 1.4~2.0 | |||||||||
| A | B | C | D | E | D | E | D | E | ||||
| 1×2 | YL-2R | 10.7 | 16.8 | 7.1 | 4.4 | 1.3 | 5.0 | 1.0 | 5.6 | 0.7 | ||
| 1×3 | YL-3R | 15.3 | 21.3 | 7.1 | 4.4 | 1.3 | 5.0 | 1.0 | 5.6 | 0.7 | ||
| 2×2 | YL-4R | 10.7 | 16.8 | 12.9 | 7.1 | 2.85 | 7.7 | 2.55 | 8.3 | 2.25 | ||
| 2×3 | YL-6R | 15.3 | 21.3 | 12.9 | 7.1 | 2.85 | 7.7 | 2.55 | 8.3 | 2.25 | ||
| 2×4 | YL-8R | 19.8 | 25.8 | 12.9 | 7.1 | 2.85 | 7.7 | 2.55 | 8.3 | 2.25 | ||
| 3×3 | YL-9R | 15.3 | 21.3 | 18.2 | 7.1 | 5.55 | 7.7 | 2.55 | 8.3 | 4.95 | ||
| 3×4 | YL-12R | 19.8 | 25.8 | 18.2 | 7.1 | 5.55 | 7.7 | 2.55 | 8.3 | 4.95 | ||
| 2×6 | YL-12R | 28.9 | 34.8 | 12.9 | 7.1 | 2.85 | 7.7 | 2.55 | 8.3 | 2.25 | ||
| 3×5 | YL-15R | 24.4 | 30.3 | 18.2 | 7.1 | 5.55 | 7.7 | 2.55 | 8.3 | 4.95 | ||
| 4×4 | YL-16R | 37.9 | 43.8 | 12.9 | 7.1 | 2.85 | 7.7 | 2.55 | 8.3 | 2.25 | ||
