Metal Button switch

KY39608 (ML系列)
3.96mm

Download drawings

技术特性
额定电压	250V AC，DC
额定电流	7A AC, DC
接触电阻	10mΩ max
绝缘电阻	1000MΩ min
耐压	1500V AC/minute
环境温度	-25°C〜+85°C
适用线规	AWG#24〜#18
材料
孔座	尼龙UL94-V0(2)
针座	PBT/UL94-V0(2)
端子	磷青铜,镀锡

Contour dimension

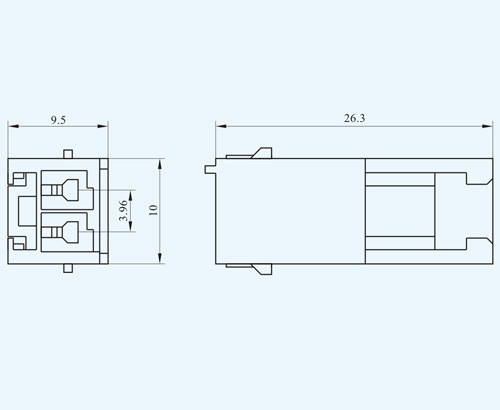

3-017-3-2P(ML-2P)

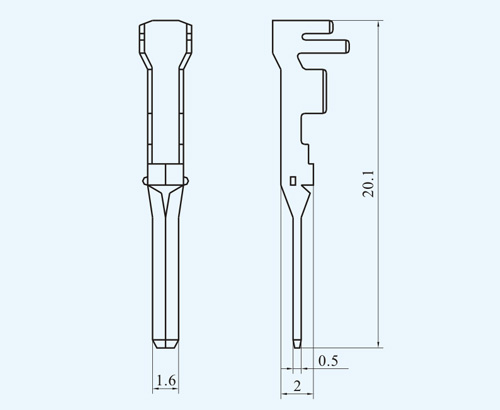

3-017-3-PT(ML-PT)

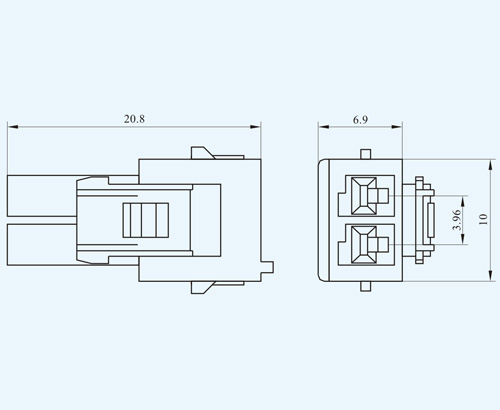

3-017-3-2R(ML-2R)

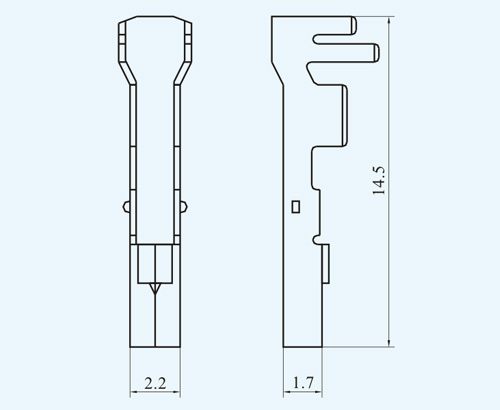

3-017-3-RT(ML-RT)
